DOT Push-to-Connect Configurations Explained: The PT10–PT29 Series
Table of Contents
The DOT push-to-connect PT series covers every common air-line connection — straights, elbows, tees, unions, bulkheads, and a press-in cartridge — in tube sizes from 5/32" through 3/4". Plan the route, count the nodes, and there's a PT configuration for each. This guide walks the series by function so you can match the fitting to the job.
How to Read the Series
Each configuration has a PT number. Threaded fittings use NPTF (Dryseal) threads; bulkhead unions use a metric panel thread; and unions plus the press-in cartridge are threadless. All are brass and designed for PA (nylon) tubing complying with SAE (DOT). "Male" means the fitting threads into a port; "female" means a threaded port threads into the fitting; "swivel" means the tube outlet can be rotated after the thread is tight, which helps clock a line in tight routing.
Straight Connectors
| PT | Configuration | Tube OD range |
|---|---|---|
| PT11 | Straight, male (NPTF) | 5/32"–3/4" |
| PT13 | Straight, female (NPTF) | 5/32"–1/2" |
The workhorses — a tube-to-thread connection in line with the port. PT11 threads into a male port; PT13 receives a male thread.
Elbows
| PT | Configuration | Tube OD range |
|---|---|---|
| PT14 | Fixed elbow, male (NPTF) | 5/32"–3/8" |
| PT15 | Swivel elbow, male (NPTF) | 5/32"–3/4" |
| PT15-45 | 45° swivel elbow, male (NPTF) | 1/4"–1/2" |
| PT17 | Swivel elbow, female (NPTF) | 5/32"–1/2" |
Elbows turn the line 90° (or 45° for PT15-45). Use a fixed elbow (PT14) where the orientation is controlled by tightening; use a swivel (PT15, PT17) where you need to aim the tube outlet after the thread is home — the more forgiving choice in tight spaces.
Tees
| PT | Configuration | Tube OD range |
|---|---|---|
| PT20 | Swivel tee, male taper (NPTF) | 5/32"–1/2" |
| PT20-F | Swivel tee, female (NPTF) | 1/4"–1/2" |
| PT23 | Lateral run tee, male taper (NPTF) | 5/32"–1/2" |
| PT29 | Union tee (threadless, tube-to-tube) | 5/32"–5/8" (incl. reducing) |
Tees branch a line into two. PT20/PT20-F and PT23 combine a threaded port with tube ports; PT29 is an all-tube union tee, including reducing versions (for example, a 1/2" run with a 1/4" or 3/8" branch).
Unions and Union Elbows (Tube-to-Tube)
| PT | Configuration | Tube OD range |
|---|---|---|
| PT26 | Union, straight (threadless) | 5/32"–3/4" |
| PT28 | Union elbow (threadless) | 5/32"–5/8" |
Unions join two tubes with no threaded port — PT26 in line, PT28 around a 90° turn. Useful for extending or repairing a run.
Bulkhead Unions (Panel Pass-Through)
| PT | Configuration | Tube OD range |
|---|---|---|
| PT27 | Bulkhead union (metric panel thread) | 5/32"–5/8" |
| PT27-F | Bulkhead union, female (NPTF + metric panel) | 5/32"–1/2" |
Bulkhead unions pass a line cleanly through a panel or frame plate, secured by a metric panel thread and nut. PT27 is tube-to-tube through the panel; PT27-F adds a female NPTF port on one side.
Press-In Cartridge
| PT | Configuration | Tube OD range |
|---|---|---|
| PT10 | Press-in cartridge, for SAE J2494-4 aluminum cavity | 5/32"–3/8" |
The PT10 is a threadless cartridge designed to press into an aluminum cavity built to SAE J2494-4 — used where a push-to-connect port is machined directly into a valve body or manifold.
Choosing Among Them

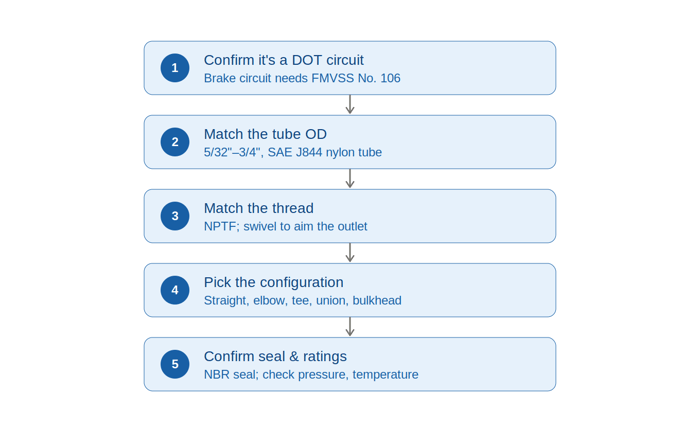

Work the route: identify each connection as tube-to-thread (straights, elbows, some tees), tube-to-tube (unions, union elbow, union tee), a branch (tees), a panel pass-through (bulkhead), or a machined cavity (cartridge). Then match the tube OD and — for threaded fittings — the NPTF size to the port. For the full selection sequence, see How to Choose the Right DOT Fitting. For exact tube-OD and thread combinations per part, check the individual product pages.
