Compressed air systems depend on precise connections to operate efficiently, and choosing the right fitting for your hose plays a major role in system reliability. Understanding how to match fittings to your air hose type helps prevent leaks, maintain airflow, and protect equipment from unnecessary wear.

Whether you work in a manufacturing facility, maintenance shop, or small fabrication space, selecting compatible fittings ensures your air tools and pneumatic systems perform consistently. With several hose materials, connection styles, and pressure requirements available, knowing what to look for makes installation simpler and keeps your compressed air system running smoothly.

Why Air Hose and Fitting Compatibility Matters

Air hoses and fittings must work together as a single system. When the components match correctly, compressed air flows efficiently from the compressor to the tool or machine using it. Improperly matched fittings often cause leaks, pressure drops, or loose connections. Even a small mismatch between the hose and fitting can reduce system efficiency and force compressors to work harder than necessary.

Compatibility also affects safety. High-pressure compressed air systems rely on secure connections that can withstand vibration, movement, and repeated use. If the fitting does not properly match the hose material or size, the connection may loosen over time. By choosing the correct combination from the start, you reduce maintenance issues and extend the lifespan of both the hose and the pneumatic equipment it serves.

Understanding Air Hose Materials

The first step in selecting the right fitting is identifying the type of air hose you are using. Different hose materials behave differently under pressure, temperature changes, and bending.

Rubber

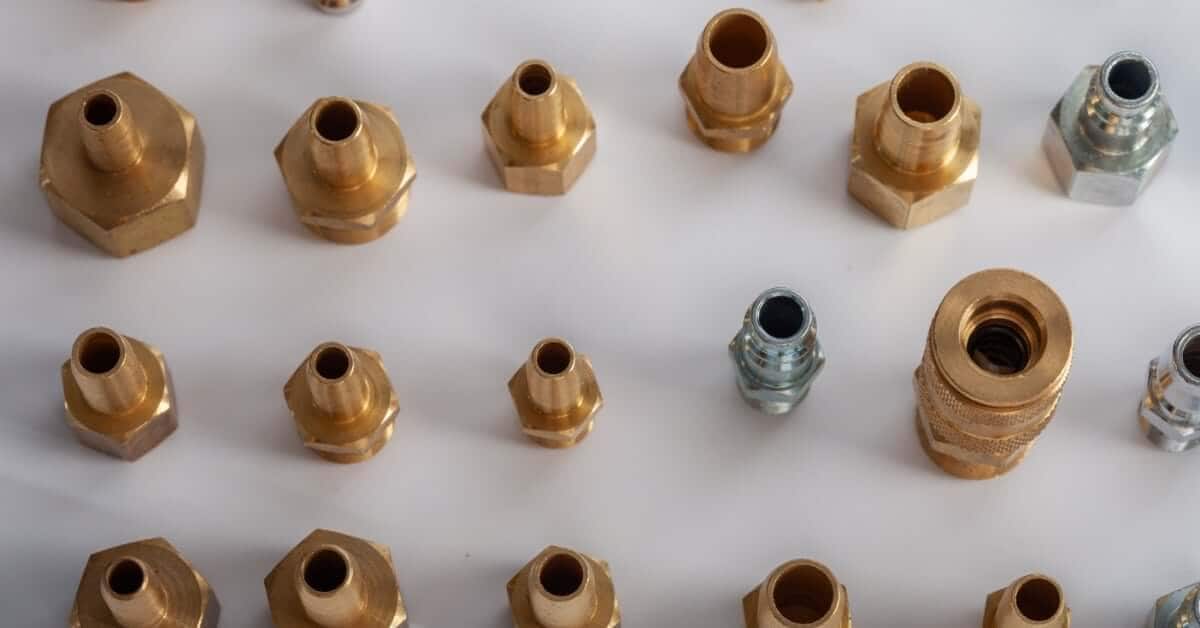

Rubber air hoses remain common in industrial environments because they offer flexibility and durability. They tolerate rough conditions and frequent movement without cracking. These hoses typically pair well with threaded metal fittings that provide a strong mechanical connection.

PVC

PVC air hoses provide a lightweight and cost-effective option for lighter-duty pneumatic applications. However, PVC tends to stiffen in colder temperatures, which means the fittings must provide a secure grip without stressing the hose material.

Polyurethane

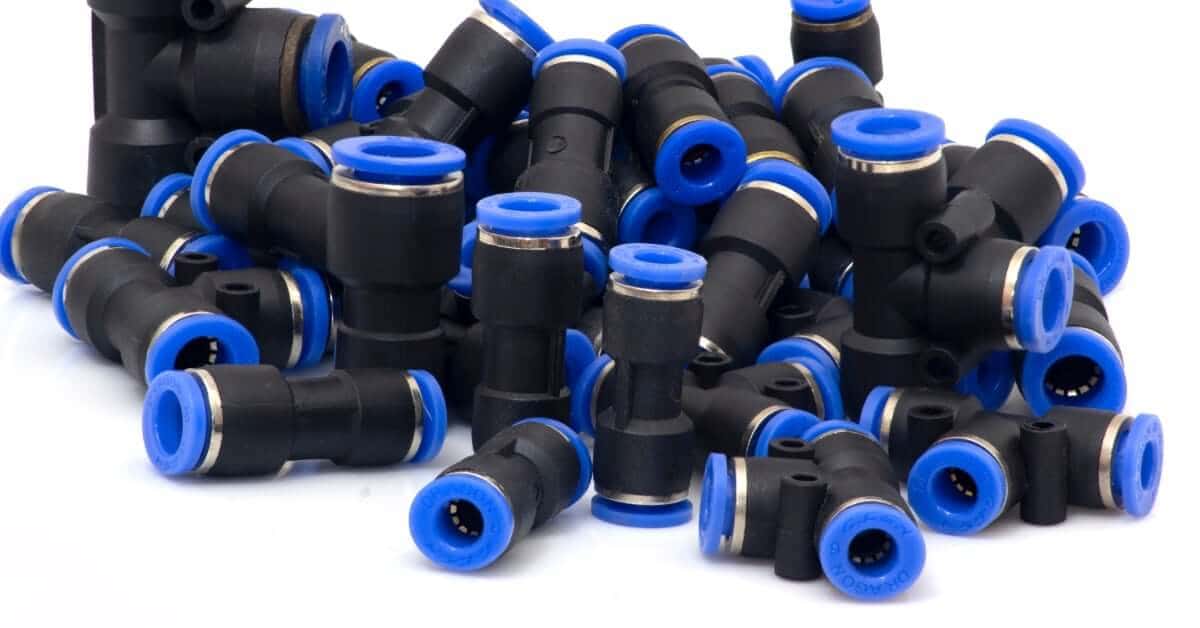

Polyurethane hoses offer excellent flexibility and resistance to kinking. Manufacturers often pair these hoses with push-to-connect fittings that allow quick installation and removal. These fittings simplify maintenance while still maintaining a tight seal.

Hybrid

Hybrid hoses combine characteristics of rubber and polymer materials to balance flexibility and durability. Matching the correct fitting ensures the hose maintains its shape and sealing ability even during repeated bending.

Identifying Hose Size and Inner Diameter

Matching fittings to an air hose also requires knowing the hose size. The most important measurement is the inner diameter, which determines how much airflow the hose can carry. Common compressed air hose sizes include quarter-inch, three-eighths-inch, and half-inch inner diameters. Each size corresponds with fittings designed to maintain consistent airflow through the connection.

If the opening of the fitting is smaller than the hose diameter, airflow becomes restricted. This restriction creates pressure drops that reduce the performance of air-powered tools and equipment. If the fitting is too large, the connection may not seal properly. Air leaks develop around the connection point, wasting energy and forcing compressors to cycle more frequently. Always match the fitting size to the hose inner diameter to maintain efficient airflow and system performance.

Matching Thread Types and Connection Styles

Another critical step when learning how to match fittings to your air hose type involves selecting the correct thread or connection style. Pneumatic systems rely on standardized thread patterns to ensure compatibility between components.

National Pipe Thread

National Pipe Thread, often abbreviated as NPT, remains one of the most widely used thread standards in compressed air systems. As you tighten these tapered threads, they create a tight seal that helps prevent air leakage.

Straight Threads

Some systems use straight threads combined with sealing washers or O-rings. These designs rely on compression rather than tapering to create an airtight connection.

Quick-Connect Couplers

Quick-connect couplers represent another common connection style. These fittings allow operators to attach or remove tools quickly without using additional tools. They are especially useful in workshops where multiple air tools share the same air supply.

Ensuring the hose fitting matches the thread type or connection style prevents installation issues. It also keeps the pneumatic system operating reliably.

Considering Pressure Ratings and Application Demands

Every compressed air system operates within a certain pressure range, and both the hose and the fittings must support that pressure safely. Fittings carry pressure ratings that indicate the maximum pressure they can withstand. Selecting fittings with a lower rating than the hose or compressor can lead to premature failure.

Industrial environments often expose pneumatic components to vibration, heat, and frequent use. In these situations, durable metal fittings typically provide better long-term reliability than lighter-duty alternatives.

Certain applications may also require specialized fittings designed to meet regulatory standards. For example, transportation and mobile pneumatic systems frequently use DOT-rated fittings designed to handle vibration and varying environmental conditions. Matching fittings to the hose type and to the demands of the application ensures the connection remains reliable under real operating conditions.

Preventing Air Leaks and Connection Failures

Air leaks remain one of the most common problems in compressed air systems, and mismatched fittings often cause them. Even minor leaks can significantly impact system efficiency over time. Properly matched fittings create a consistent seal between the hose and the connection point. This seal prevents compressed air from escaping while maintaining stable system pressure.

Installation also plays an important role. Applying the correct sealing method and tightening fittings properly ensures the connection remains secure during operation. Routine inspection helps identify worn fittings or damaged hoses before they lead to larger issues. Replacing components promptly helps maintain system performance and avoid downtime. When fittings match the hose correctly, the system operates more efficiently and requires less maintenance overall.

Choosing the Right Fittings for Reliable Pneumatic Performance

Understanding how to match fittings to your air hose type helps ensure your compressed air system operates safely, efficiently, and reliably. By considering hose material, inner diameter, thread compatibility, and pressure requirements, you can select fittings that create secure connections and maintain consistent airflow. Properly matched components reduce leaks, protect equipment, and simplify installation and maintenance across a wide range of pneumatic applications.

For professionals who rely on dependable pneumatic connections, PneumaticPlus offers a wide range of durable and precision-engineered fittings designed for industrial and commercial use. Our selection includes standard pneumatic fittings as well as DOT fittings that meet demanding application requirements. With high-quality components built for performance and reliability, PneumaticPlus provides the solutions needed to keep compressed air systems operating at peak efficiency.
