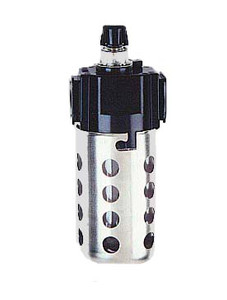

Arrow Pneumatics Standard Arrowfog Lubricator 3/8" (Metal Bowl w/o Sight) L353M

$88.20 $74.97
(You save $13.23)

Arrow Pneumatics Standard Arrowfog Lubricator 3/8" (Metal Bowl w/o Sight) L353M

$88.20 $74.97
(You save $13.23)
Availability:
Usually ships within 24 to 48 hours
Share

Product Description

Arrow Pneumatics Standard Arrowfog Lubricator 3/8" (Metal Bowl without Sight) 82 SCFM





Features
• Oil delivery at low air flow approximately 2 scfm
• Aluminum housing
• 3-position non-rising adjustment knob; push to lock, pull to adjust, detach for tamper resistant
• Lubricator my be filled without shutting down air line
• Can be converted on-line to Ultrafog lubricator with interchangeable module Part #RKL452



Specifications
Polycarbonate Bowl with Bowl Guard
• Max. pressure 150psig
• Operating temperature range 40°F to 125°F
Body
• Black E coated aluminum
Metal Bowl
• Zinc, black E coated
• Max. pressure 200psig
• Operating temperature range 40°F to 160°F
Metal Bowl with Sight
• Zinc, black E coated
• Max. pressure 200psig
• Operating temperature range 40°F to 160°F
Recommended Oil
• SAE 10 oil or lighter
• Atomized average 2 micron

Warning! Polycarbonate plastic bowls could rupture if exposed to incompatible chemicals whether inside or outside the bowl. If such chemicals are present, use a metal bowl.





Dimensions
Pipe Size
Model Number
Max. Flow SCFM *
Bowl Capacity
Dimensions (Inches)
Weight (lbs.)
A
B
C
D
1/4"
L352
16
5 oz.
2 3/4
2 1/8
7
2 1/2
1.0



Flow SCFM based on 5.0psi delta p @ 100 psig inlet
