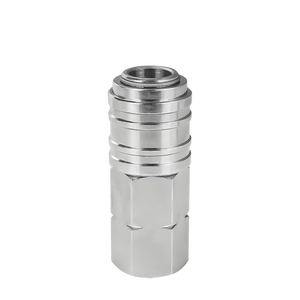

PU10-12 Female NPT Quick Coupler – Nickel Plated Brass Pneumatic Air Fitting
The PU10-12 Female NPT Quick Coupler is a high-performance pneumatic quick disconnect fitting designed for secure, leak-free compressed air connections. Built for durability and smooth airflow, this nickel plated brass air coupler allows fast tool changes while maintaining consistent system pressure.
Ideal for industrial, automotive, and workshop compressed air systems, this female NPT quick connect fitting delivers reliable performance in demanding environments.
Why Choose This Female NPT Quick Coupler?
- Female NPT threaded body for secure installation onto male NPT fittings
- Quick disconnect mechanism for fast tool changes
- Nickel plated brass construction resists corrosion and wear
- High-flow internal design minimizes pressure drop
- Leak-resistant sealing system for dependable operation
- Industrial-grade durability for long service life
Common Applications
- Air compressor quick connect systems
- Pneumatic tool hookups
- Manufacturing and automation equipment
- Automotive repair facilities
- Assembly lines and maintenance departments
- Workshop and garage air systems
Product Specifications
- Model: PU10-12
- Connection Type: Female NPT
- Material: Nickel Plated Brass
- Media: Compressed Air
- Interchange Style: Universal / Industrial
Technical Dimensions & Reference

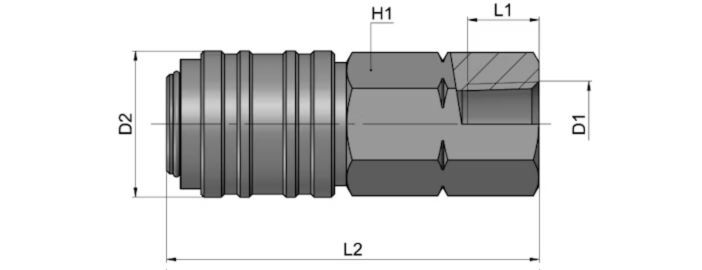

Below is the dimension reference diagram for the PU10-12 Female NPT Quick Coupler. This diagram illustrates measurement points including D1, D2, L1, L2, and H1.
Sizing Chart
| Part Code | D1 (Female NPT Size) | D2 (mm/in) | L1 (mm/in) | L2 (mm/in) | H1 (mm/in) |
|---|---|---|---|---|---|
| PU10-120014 | 1/4" NPT | 23.5 / 0.925 | 12.5 / 0.512 | 56.5 / 2.224 | 20 / 0.787 |
| PU10-120038 | 3/8" NPT | 23.5 / 0.925 | 12.5 / 0.512 | 56.5 / 2.224 | 20 / 0.787 |
| PU10-120012 | 1/2" NPT | 23.5 / 0.925 | 13.5 / 0.669 | 59.5 / 2.343 | 24 / 0.945 |
Dimensions provided for reference only. Always verify thread size and fit before installation.
Ideal Applications
- Air compressor quick connect systems
- Pneumatic tool hookups
- Automotive repair shops
- Industrial manufacturing lines
- Maintenance and service operations
- Garage and workshop air systems
Why Choose This Quick Coupler?
- Versatile universal compatibility
- Strong, corrosion-resistant nickel plated brass body
- Secure, leak-resistant NPT threaded connection
- Smooth connect and disconnect performance
- Built for professional and industrial use
For dependable compressed air connections and universal compatibility, the PU10 Multi Socket Quick Coupler – Universal Male NPT Nickel Plated Brass is an ideal solution for high-performance pneumatic systems.
