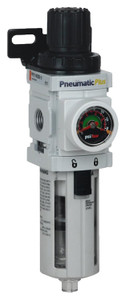

PneumaticPlus PPP2-N02BG Air Filter Regulator Combo | 1/4" NPT, 47 SCFM, 5 Micron | Poly Bowl, Manual Drain
The PneumaticPlus PPP2-N02BG is a piggyback compressed air filter regulator designed to deliver clean, regulated air at the point of use for pneumatic tools, automation panels, and industrial compressed air systems and circuits.
It combines 5 micron particulate filtration with a 0–140 PSI regulating range and a compact filter regulator unit form factor, helping reduce contamination-related issues and pressure fluctuations in downstream components.
ARO® Cross-Reference: PneumaticPlus PPP2-N02BG replaces ARO® P39124-600-VS and P39124 variations. PPP Series compressed air filter regulator combos are designed to match the corresponding ARO part family.
Common Applications & Use Cases
The PPP2-N02BG is commonly used where compact point-of-use air preparation helps protect downstream pneumatic components.
- Workstations & air drops: Filtration + pressure control at benches and tool stations.
- Machine panels / OEM equipment: Compact piggyback filter regulator assembly reduces fittings and saves space.
- Automation circuits: Helps reduce particulate contamination to valves, cylinders, and actuators.
- Maintenance/retrofit: Simple upgrade for an existing 1/4" NPT compressed air line.
Technical Specifications – PPP2-N02BG
| Feature | Details |
|---|---|
| Model | PPP2-N02BG |
| Type | Piggyback Air Filter Regulator Combo |
| Port Size | 1/4" NPT |
| Filter Rating | 5 micron particulate |
| Regulating Range | 0–140 PSI |
| Flow Capacity | 47 SCFM |
| Drain Type | Manual drain |
| Bowl Type | Poly bowl (polycarbonate) |
| Gauge | Embedded / flush-mount gauge (0–140 PSI) |
| Max Inlet Pressure (reference) | 150 PSI |
| Operating Temperature (reference) | 23°F to 125°F |
Bowl Material Guidance: Polycarbonate bowls provide visibility for inspection, but for higher-pressure environments or where solvents/chemicals can attack polycarbonate, a metal bowl option is recommended.
PPP Series Sizes & ARO® Cross-Reference
| PneumaticPlus Model | Port Size | SCFM | Replaces ARO® Part No. |
|---|---|---|---|
| PPP2-N02BG | 1/4" NPT | 47 | P39124-600-VS / P39124 variation |
Frequently Asked Questions
Q: What does a piggyback filter regulator do?
A: It combines particulate filtration and pressure regulation to help deliver clean, stable compressed air to downstream tools and components.
Q: Is PPP2-N02BG a replacement for ARO® P39124-600-VS?
A: Yes. PPP2-N02BG is intended as a replacement for ARO® P39124-600-VS (and P39124 variations).
Q: What does 47 SCFM mean?
A: It is the rated airflow capacity used for sizing so the filter regulator does not become a restriction in your circuit.
Q: When should I select PPP3-N02BG instead?
A: Choose PPP3-N02BG when you need higher airflow but must keep 1/4" NPT piping; it uses 1/4" threads on a larger body to reduce restriction.
Q: What types of applications is PPP2-N02BG best suited for?
A: It is best suited for point-of-use compressed air preparation on small tools, automation panels, and general industrial air lines where 1/4" NPT and moderate flow are required.
Third-Party Trademark Notice: ARO® is a registered trademark of its respective owner. PneumaticPlus is not affiliated with, sponsored by, authorized by, or endorsed by ARO or any of its affiliates. All trademarks and registered trademarks are the property of their respective owners. References to ARO part numbers are provided for identification and cross-reference/compatibility purposes only.
PneumaticPlus Branded Product
PneumaticPlus PPP Series piggyback filter regulators are designed for compact point-of-use air preparation where filtration, stable pressure control, and ease of maintenance are key selection factors.
