When it comes to vehicle safety and performance, every component matters. You might be familiar with major parts like engines and brakes, but smaller components often play an equally critical role. DOT fittings are a perfect example. These specialized connectors are essential for maintaining the integrity and safety of pneumatic systems in vehicles, especially commercial trucks. Understanding what DOT fittings are and why they are important is crucial for anyone working with vehicle air systems.

This guide will explain everything you need to know about DOT fittings. We will cover their purpose, the materials used to make them, and the strict standards they must meet. By the end, you will have a clear understanding of how these components contribute to the safe and efficient operation of countless vehicles on the road today.

What DOT Stands For

The acronym DOT stands for the Department of Transportation. This US government agency is responsible for ensuring a fast, safe, and efficient transportation system. To achieve this, the DOT establishes and enforces a wide range of regulations and standards for vehicles and their components.

A DOT-approved fitting means the product meets the agency’s stringent safety and performance criteria. These standards make sure the fittings can endure the demands of vehicle operation, ensuring reliability and preventing system failures.

What DOT Fittings Are Used For

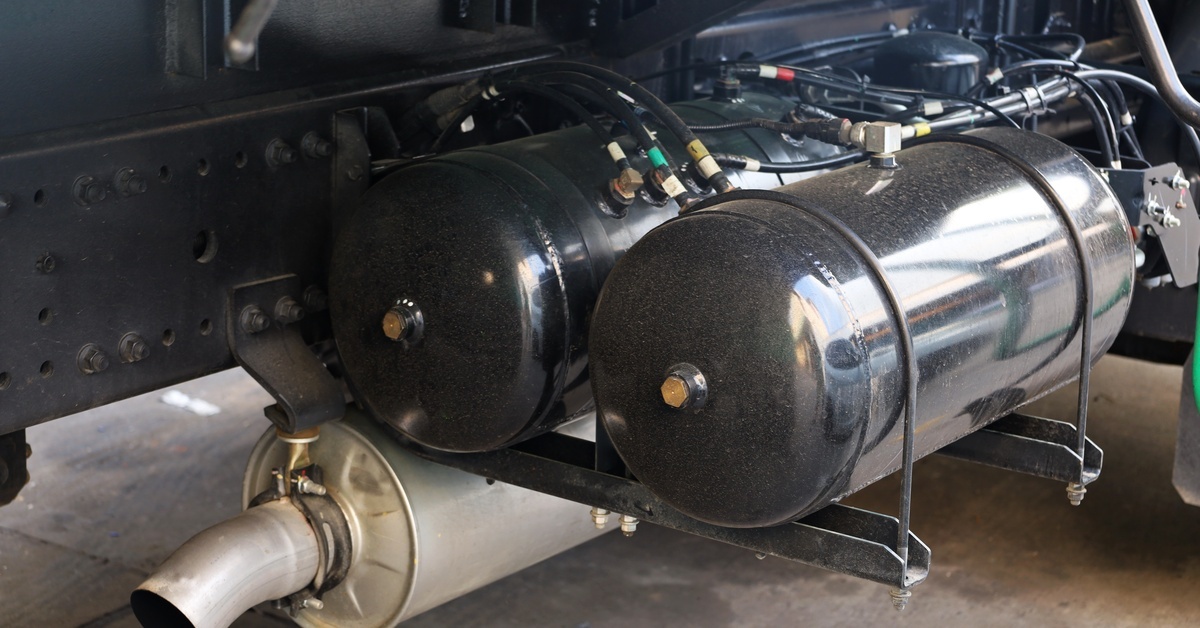

DOT fittings primarily serve the pneumatic (compressed air) systems of vehicles. Their most critical application is in the air brake systems of heavy-duty trucks, trailers, and buses. Air brakes rely on a steady supply of compressed air to function correctly. A leak or failure in this system could lead to loss of braking power. DOT fittings create secure, leak-free connections between the various lines and components of the air brake system, ensuring it operates safely and reliably.

Beyond air brakes, these fittings serve other compressed air systems within vehicles. This includes air suspension systems, which use air to absorb road shocks and maintain vehicle height, and controls for other pneumatic equipment on the vehicle. In every application, the goal is to provide a dependable connection that can handle the constant vibration, pressure fluctuations, and temperature changes experienced on the road.

DOT Fitting Materials

Manufacturers construct DOT fittings from high-quality materials to guarantee their durability and reliability under pressure. The choice of material is critical because it directly impacts the fitting’s strength, corrosion resistance, and ability to maintain a seal over time.

Brass

Brass is one of the most common materials used. Brass offers excellent corrosion resistance, which is vital for components exposed to road salt, moisture, and other corrosive elements. It is also strong and durable, capable of withstanding high pressures without deforming or failing.

Stainless Steel

For applications requiring even greater durability and resistance to harsh chemicals or extreme temperatures, stainless steel is another option. While less common than brass due to its higher cost, stainless steel provides superior strength and corrosion resistance. This makes it suitable for specialized vehicles that operate in corrosive environments, such as those used in mining or chemical transport.

Composite Materials

Composite materials are another popular choice. These fittings often combine a brass body with a plastic or polymer component. This construction provides the strength of metal where it’s needed most, while the composite parts can offer advantages like lighter weight and resistance to certain chemicals.

Regardless of the specific material, all DOT-approved fittings must pass rigorous testing to prove their durability and long-term reliability under pressure.

DOT Fitting Standards and Compliance

For a fitting to receive DOT approval, it must comply with specific federal standards. The primary regulation governing these components is the Federal Motor Vehicle Safety Standard (FMVSS) 106. This standard outlines the performance and testing requirements for brake hoses, assemblies, and end fittings. It dictates that fittings must withstand extreme temperatures, pressures, and vibrations without leaking or failing.

Compliance with these standards is not optional; it is a legal requirement for any component used in a vehicle’s air brake system. Using non-compliant fittings can lead to safety violations, fines, and, most importantly, an increased risk of accidents.

Types of DOT Fittings

DOT fittings come in various designs to suit different connection needs within a pneumatic system. The most common types are push-to-connect and compression fittings, each offering a distinct method for securing air lines.

Push-To-Connect Fittings

Push-to-connect fittings, also known as PTC fittings, are incredibly popular due to their ease of use. They allow for quick and tool-free installation. To make a connection, you simply push the air tubing firmly into the fitting. An internal gripping ring, or collet, clamps down on the tubing, while an O-ring provides a leak-proof seal.

This design simplifies assembly and allows for easy disassembly, making maintenance and repairs more efficient. You can find these fittings in a wide range of shapes, including straight connectors, elbows, and tees, to accommodate various system layouts.

Compression Fittings

Compression fittings offer a more permanent and mechanically robust connection. This type of fitting consists of three parts: a body, a sleeve (or ferrule), and a nut. To create a connection, insert the tubing into the body and tighten the nut. This action compresses the sleeve onto the tubing, creating a powerful, secure seal. While installation requires tools and takes more time than with push-to-connect fittings, compression fittings provide exceptional resistance to vibration and pull-out forces. This makes them a reliable choice for the most critical connections.

How To Select the Right DOT Fitting

Choosing the correct DOT fitting is essential for system safety and performance. The first consideration is the type of tubing you are using. Manufacturers design fittings to work with specific sizes and tubing materials, such as nylon or copper. Using a fitting with incompatible tubing can result in a poor seal and potential leaks.

You must also consider the pressure and temperature requirements of the system. Make sure the fitting you select can handle the maximum operating pressure and temperature range it will encounter. Finally, always verify the fitting has a DOT-approved marking. This marking confirms the product passed testing and certification, meeting required safety standards.

Ensuring Safety With the Right Fittings

DOT fittings are vital safety components that ensure the integrity of vehicle air systems. From air brakes to suspension, these small parts play a big role in keeping heavy vehicles operating safely on our roads. By understanding what DOT fittings are and the standards they must meet, you can make sure your pneumatic systems are both compliant and reliable.
