Push-To-Connect Fittings vs. Traditional Air Fittings

Pneumatic systems offer two primary approaches to connecting air lines: push-to-connect fittings and traditional threaded or barbed connections. Each method has carved out its place in industrial applications, workshops, and manufacturing facilities worldwide. Understanding the fundamental differences between push-to-connect fittings and traditional air fittings can save you time, money, and frustration when designing or maintaining pneumatic systems.

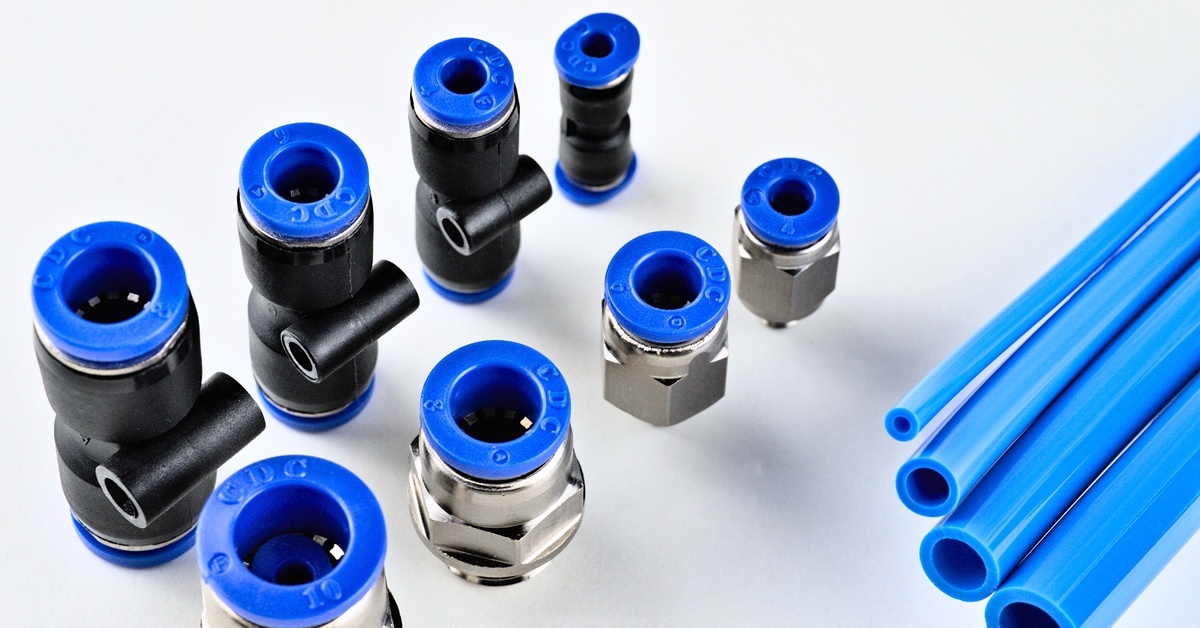

Push-To-Connect Fittings

Push-to-connect fittings use a clever mechanism that lets you insert tubing directly into the fitting without the need for tools or extra parts. The internal design features a collet or gripper ring that grabs the tubing when inserted, while an O-ring creates an airtight seal. This mechanism locks the tubing in place while maintaining a secure connection that can handle typical pneumatic pressures.

Advantages

The primary advantage of push-to-connect fittings is their remarkable ease of installation. Technicians can make connections in seconds simply by pushing tubing into the fitting until it bottoms out. This speed translates directly into labor cost savings, particularly in applications requiring numerous connections or frequent modifications. The installation process requires no threading, no sealants, and no specialized tools, making it accessible to workers with varying skill levels.

Reusability is another significant benefit of push-to-connect technology. When system modifications or repairs are necessary, you can disconnect the tubing by pressing a release collar and pulling the tube free. You can repeat this process multiple times without degrading the fitting’s performance, making these connections ideal for temporary setups, testing environments, or systems that require regular reconfiguration.

The clean, professional appearance of push-to-connect installations appeals to many users, particularly in visible applications or clean room environments. The compact design and consistent appearance create neat, organized pneumatic systems that are easier to troubleshoot and maintain. Additionally, installation reduces the risk of contamination since it does not require thread sealants or tapes.

Disadvantages

Push-to-connect fittings come with notable drawbacks. The initial cost is typically higher than traditional fittings, which can impact budget-conscious projects.

More critically, these fittings may be prone to accidental disconnection if subjected to excessive pulling forces or vibration. While modern designs have improved retention strength significantly, this remains a consideration in high-stress applications or environments where mechanical abuse might damage tubing.

Common Applications

Push-to-connect fittings excel in applications such as packaging machinery, automated assembly lines, laboratory equipment, and point-of-use connections that value quick installation and modification. They are particularly well-suited for systems using smaller diameter tubing and moderate pressure ranges.

Traditional Air Fittings

Traditional air fittings encompass several connection methods, including threaded fittings with NPT or BSPT threads, barbed connections that grip tubing mechanically, and compression fittings that create seals through mechanical force. These time-tested connection methods rely on mechanical interference, thread engagement, or compression to create secure, leak-free joints.

Advantages

The most compelling advantage of traditional fittings is their lower initial cost. Standard threaded fittings, barbed connectors, and basic compression fittings are significantly less expensive than their push-to-connect counterparts. This cost advantage becomes particularly pronounced in large systems requiring numerous connections, where the savings can be substantial.

Reliability under extreme conditions is another strength of traditional fittings. Properly installed threaded connections can withstand high pressures, temperature extremes, and mechanical stress that might challenge push-to-connect alternatives. The mechanical nature of these connections means they are less likely to fail due to vibration, impact, or environmental factors that could affect more sophisticated connection mechanisms.

Traditional fittings also offer superior performance in high-pressure applications. Threaded connections, when properly sealed and tightened, can handle system pressures that exceed the capabilities of most push-to-connect fittings. This makes them indispensable in heavy industrial applications, high-pressure pneumatic systems, and critical applications where connection failure could have serious consequences.

Disadvantages

The disadvantages of traditional fittings center around installation complexity and time requirements. Threaded connections require proper thread sealant application, careful tightening to avoid over-torquing, and often multiple tools for installation. Barbed fittings may require heating of tubing for installation and can be difficult to remove without cutting. These factors increase installation time and require more skilled technicians.

Leak potential presents another challenge with traditional fittings. Improperly applied sealants, incorrect torque values, or thread damage can result in system leaks that may be difficult to identify and repair. The installation process also creates opportunities for contamination introduction, particularly in clean air systems or food-grade applications.

Common Applications

Traditional fittings remain the preferred choice for heavy industrial pneumatic systems, high-pressure applications, permanent installations, and cost-sensitive projects where the additional installation time is acceptable. They excel in foundries, steel mills, construction equipment, and other demanding environments where connection reliability is paramount.

Choosing the Right Fitting for Your Application

Push-to-connect fittings shine in applications prioritizing installation speed, system flexibility, and clean appearance. They are ideal when labor costs are high, when systems require frequent modifications, or when non-skilled personnel need to make connections. These fittings work exceptionally well in automated manufacturing, packaging equipment, laboratory setups, and prototyping environments where quick changes are common.

Consider push-to-connect fittings when working with smaller tubing diameters, moderate pressures, and indoor environments with stable conditions. They are particularly valuable in applications where downtime for maintenance or modifications carries high costs, as the quick connection and disconnection capability minimizes system interruption.

Traditional air fittings remain the better choice for permanent installations, high-pressure systems, and applications where initial cost is the primary concern. They excel in outdoor installations exposed to weather extremes, heavy industrial environments with significant vibration or mechanical stress, and systems where maximum reliability is essential regardless of installation complexity.

Use traditional fittings for larger pipe sizes, infrequent connection disturbances, or system pressures that exceed push-to-connect ratings. They are also preferable in applications where the lower material cost outweighs the higher installation labor cost, particularly in regions where skilled technician time is readily available and affordable.

Making the Final Connection Decision

The choice between push-to-connect fittings and traditional air fittings ultimately depends on balancing your specific requirements for cost, installation speed, reliability, and system flexibility. Push-to-connect fittings offer compelling advantages in speed and convenience but at a higher material cost and with some limitations in extreme applications. Traditional fittings provide proven reliability and lower initial costs but require more complex installation procedures.

Consider your long-term system needs, maintenance requirements, and total cost of ownership when making this decision. Many successful pneumatic systems incorporate both connection types, using push-to-connect fittings where their advantages shine and traditional fittings where their strengths are most needed. This hybrid approach often provides the optimal balance of performance, cost, and functionality for complex pneumatic systems.
